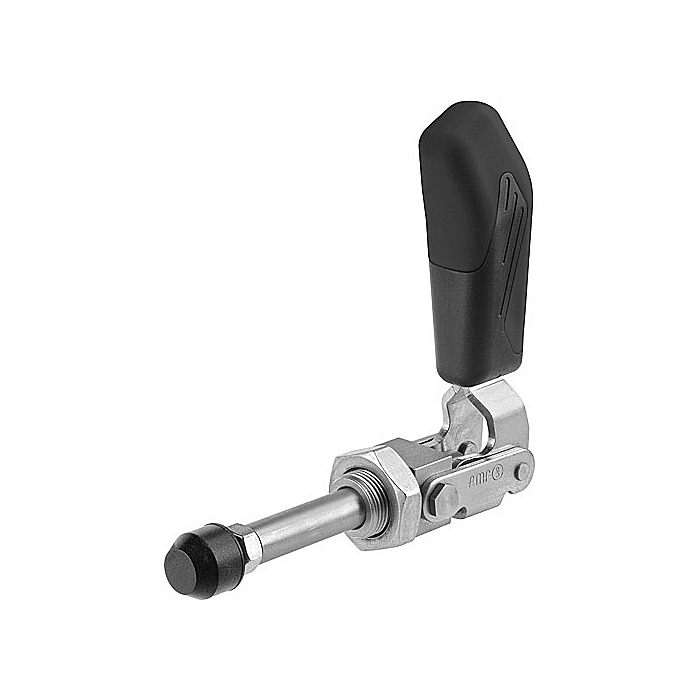

AMF 6844NIT-2 Push-pull clamp with black handle 558186
Sku: T-297849
72,60 € (excl. legal VAT, excl. Shipping)
92,10 € MSRP
In stock,ready for shipping in 3 - 4 business days
Product variants
| Sku: | Name: | SKU manufacturer: | ||
|---|---|---|---|---|
|
T-297850 | 6844NIT-3 Push-pull clamp with black handle | 558187 | |
|
T-297851 | 6844NIT-5 Push-rod clamp with black handle | 558188 |
doneGewicht (g): 130g
doneE (mm): 15
doneE (mm): 15
doneB (mm): 36
doneA (mm): 10
doneA (mm): 10
AMF - ANDREAS MAIER GmbH & Co. KG 6844NIT-2 push rod clamp with black handle 558186
Content:
1 Piece
Shipping:
The shipping costs for United Kingdom could not be calculated automatically.
Provider:
Sales and delivery by ToolTeam®
Payment methods:
Returns:
Security:
Product data
Manufacturer:
AMF - Andreas Maier GmbH & Co.KG Schloss- u. Werkzeugfabrik
Condition:
NEW
Sku:
T-297849
SKU manufacturer:
558186
GTIN Code (EAN):
4020772019358
Weight:
0,15 Kg
All information relating to products from AMF - Andreas Maier GmbH & Co.KG Schloss- u. Werkzeugfabrik. Technical and optical modifications of the manufacturer and errors reserved.
This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.
Product description
Push rod clamp with black handle short design. Push and pull clamp.
Polished stainless steel. Long push rod guide with fastening thread and nut. Fitting screws glued to the thread. Bearings greased. Ergonomic, oil-resistant handle with large hand rest and soft component.
Complete with rust-proof clamping screw no. 6880NI.
Also suitable for the food industry.
Polished stainless steel. Long push rod guide with fastening thread and nut. Fitting screws glued to the thread. Bearings greased. Ergonomic, oil-resistant handle with large hand rest and soft component.
Complete with rust-proof clamping screw no. 6880NI.
Also suitable for the food industry.
- Application:
The push rod clamp can be attached to sheet metal walls or screwed into fixture bodies with a front thread. Flange attachment is also possible using angle foot no. 6843NI.
Additional information
Gewicht (g):
130g
E (mm):
15
B (mm):
36
A (mm):
10
H [mm]:
24
Grösse:
2
M (mm):
M6
N (mm):
30,5
L1 (mm):
68,5
L2 (mm):
13
L3 (mm):
69
h1 (mm):
73,0
F1* (kN):
1,0kN
F2* (kN):
1,0kN
Hub:
21,5
Andrückschraube:
M6x25
HW min.:
17
HW max.:
27,0
M2:
M16x1,5
